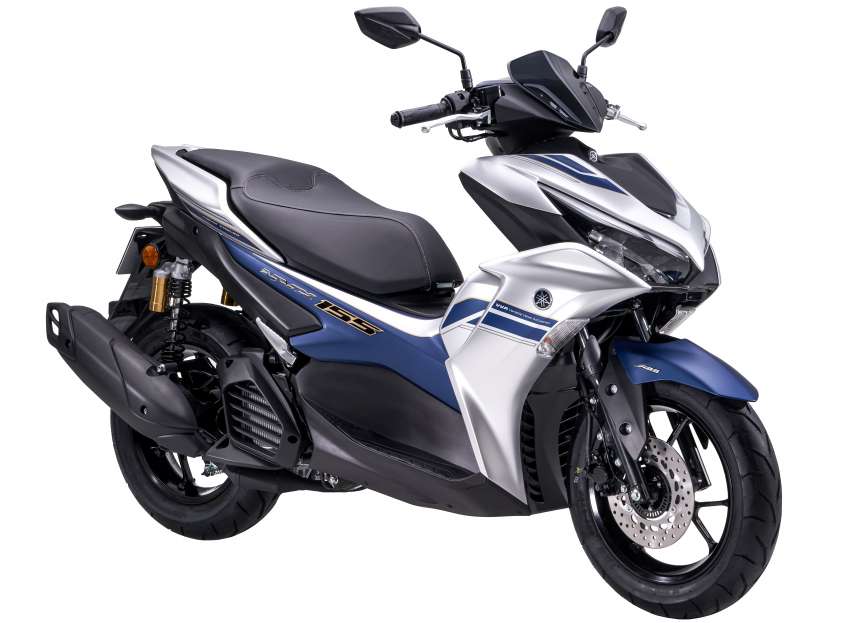

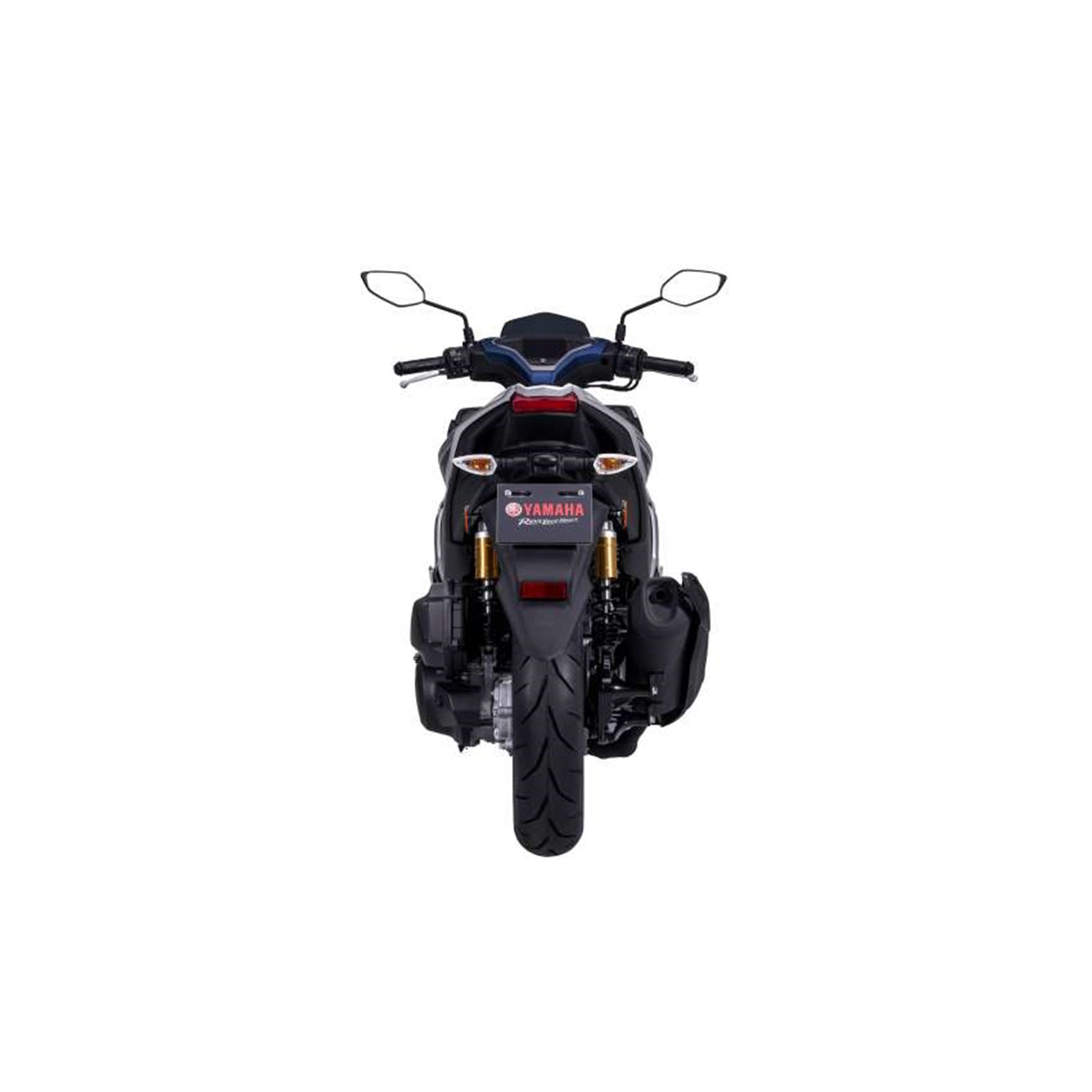

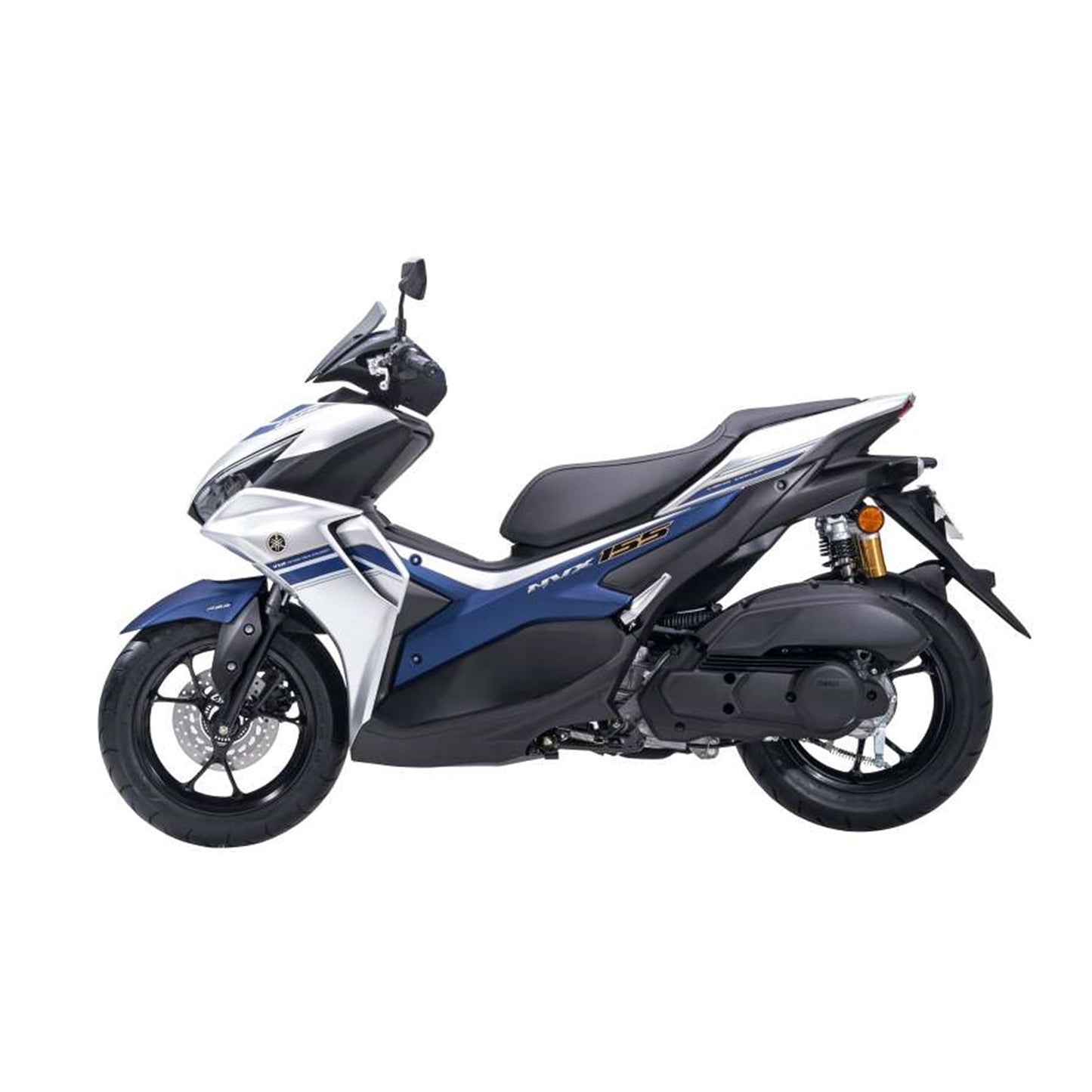

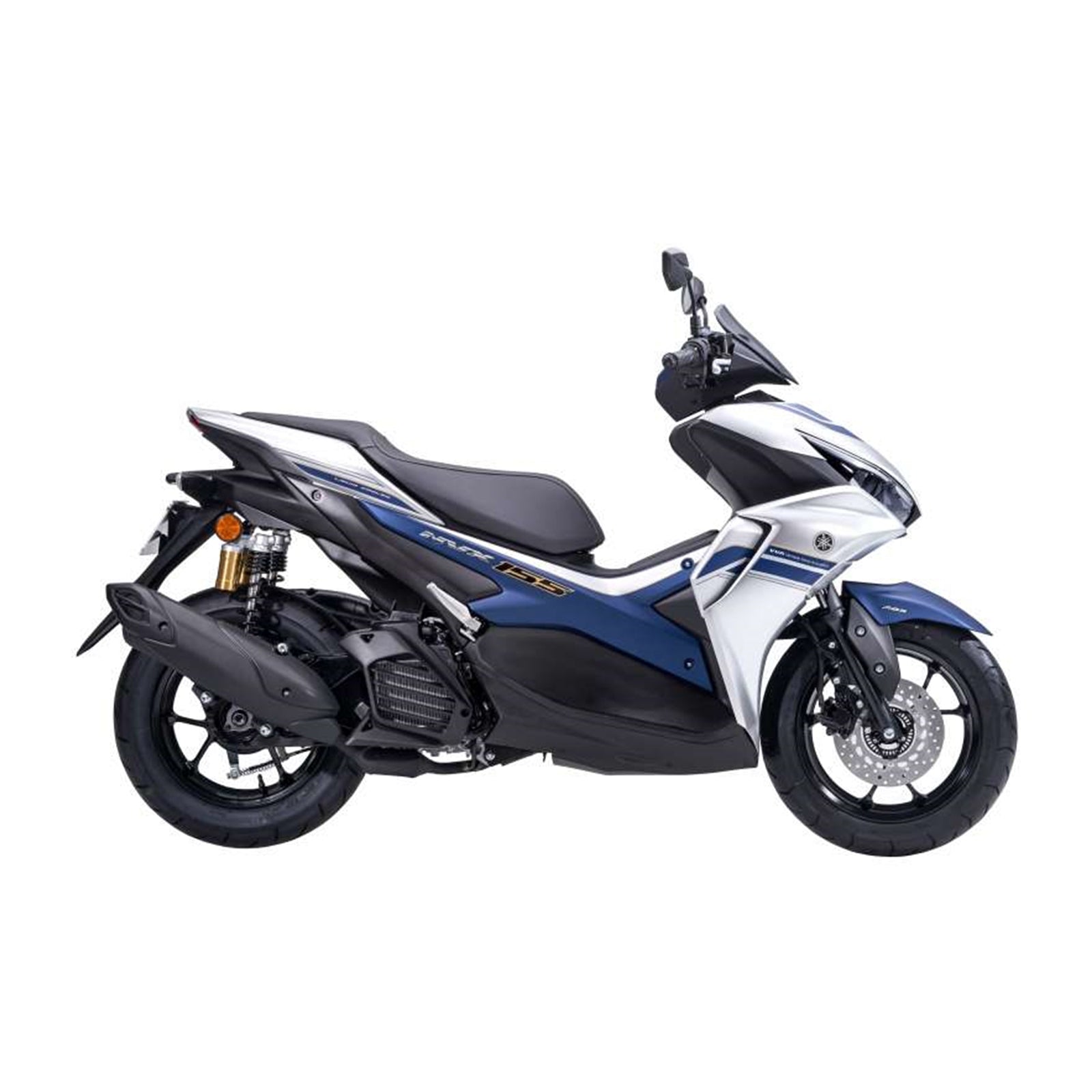

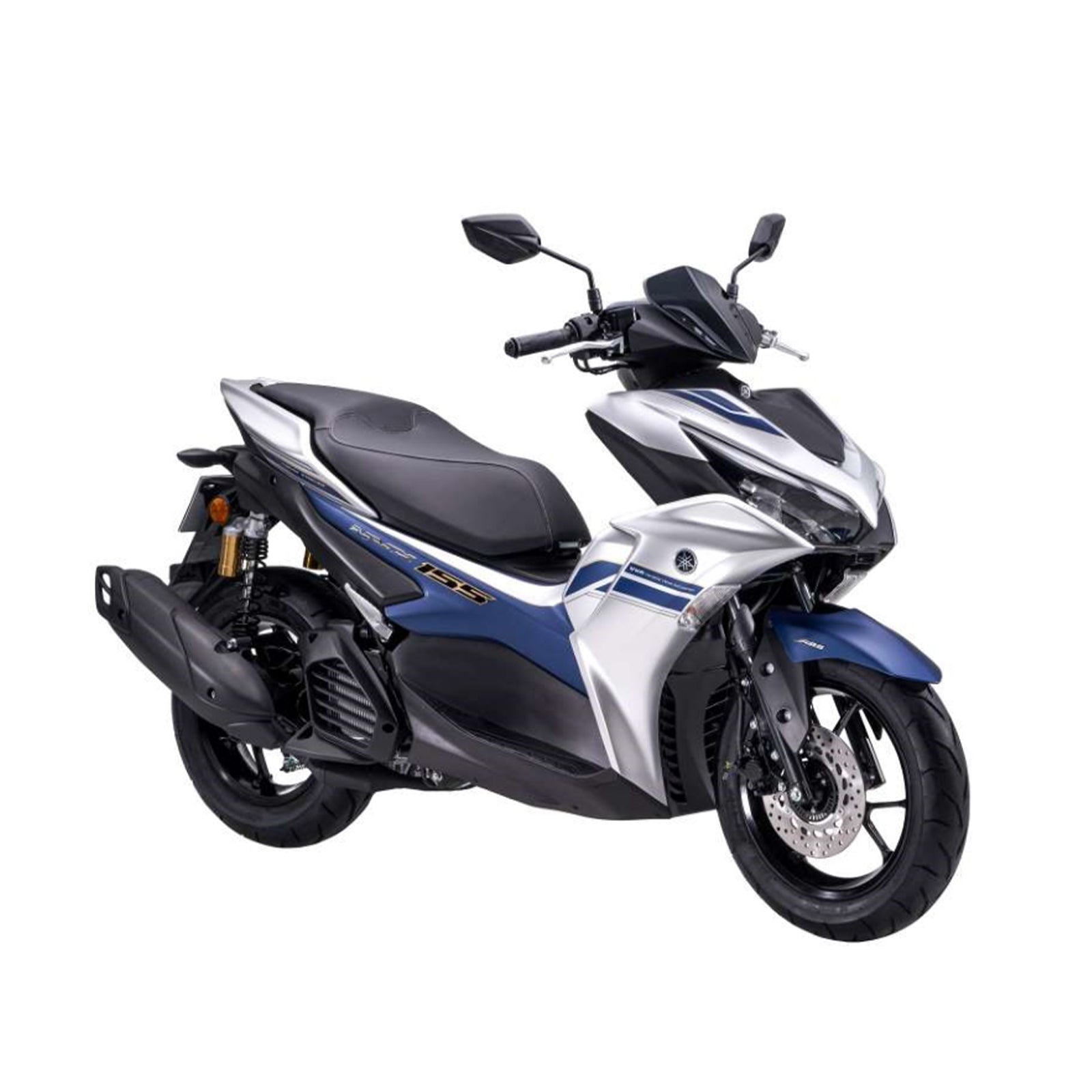

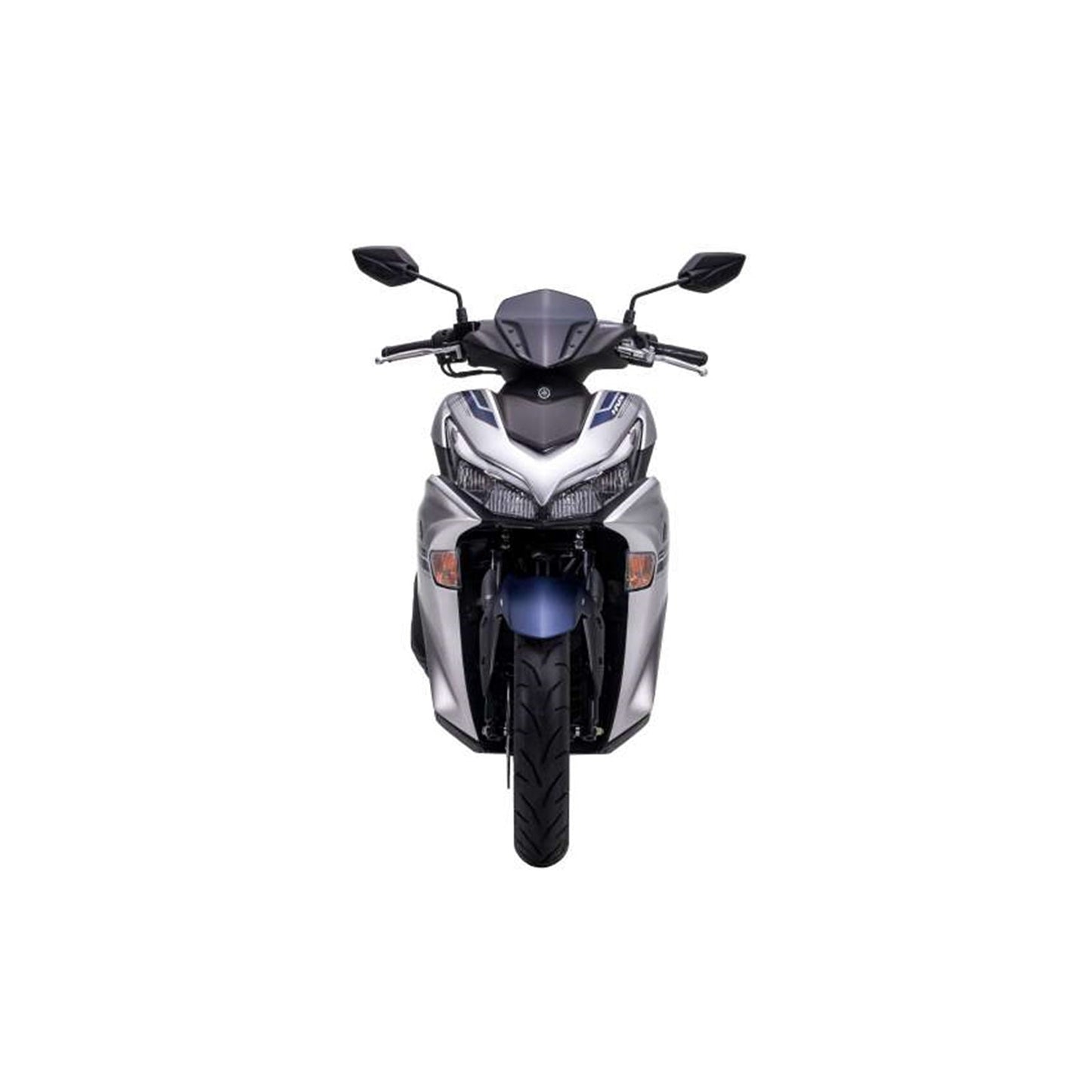

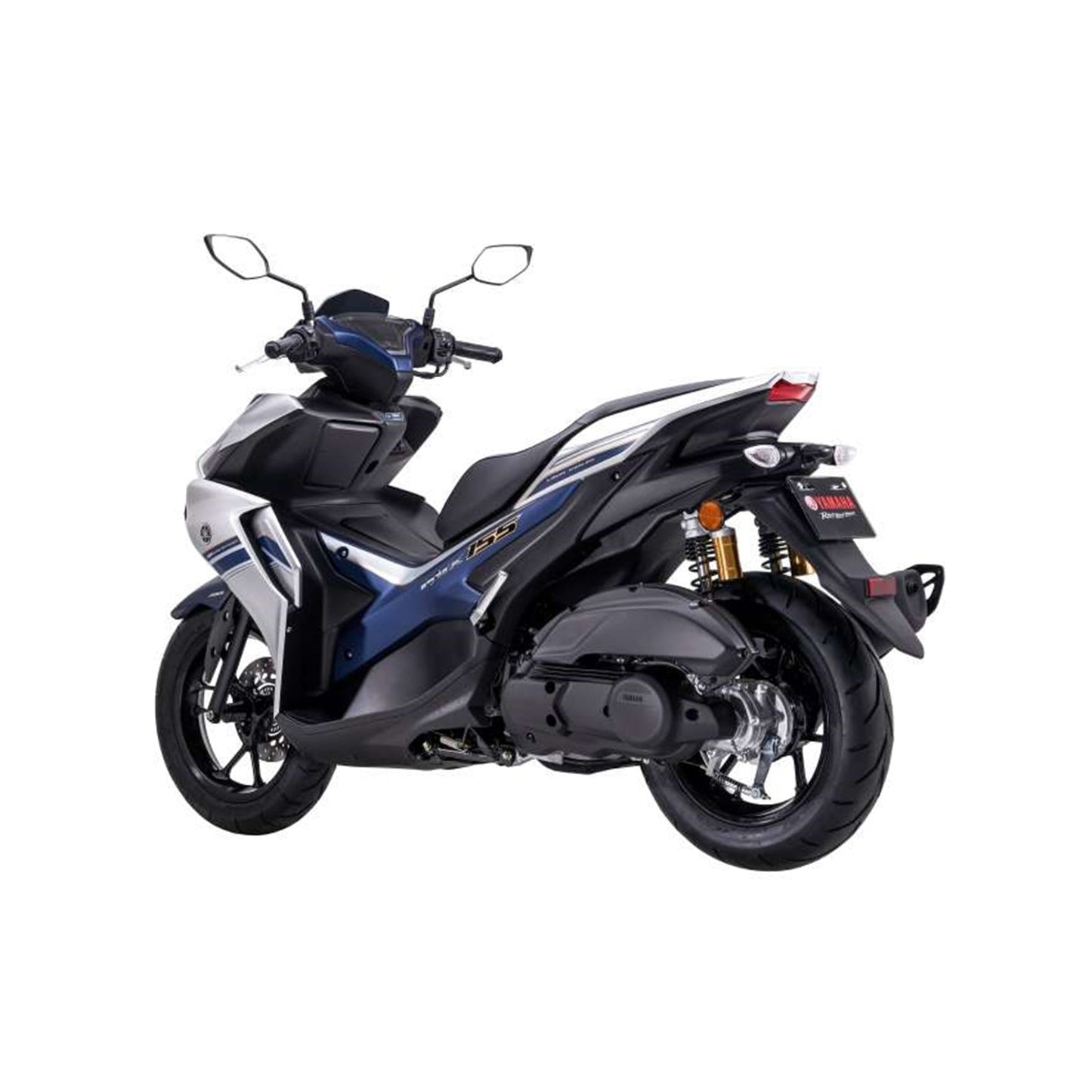

Yamaha NVX ABS

Yamaha NVX ABS

Sale Sold out
Color: Platinum Navy

Engine

Feature Specification
Type Liquid Cooled, 4-Stroke, SOHC, VVA (Variable Valve Actuation)
Bore x Stroke 58.0mm x 58.7mm
Compression Ratio 11.6:1
Max Horsepower 11.3 kW (15.4 PS) @ 8,000 rpm
Max Torque 13.9 Nm (1.4 kgf.m) @ 6,500 rpm
Starting System Electric
Engine Oil Capacity 1.0L
Cylinders Single Cylinder
Displacement 155cc
Lubrication System Wet Sump
Fuel System Fuel Injection
Ignition System TCI (Transistor Controlled Ignition)
Clutch Type Dry, Centrifugal, Shoe
Transmission Type V-Belt Automatic

Electrical

Feature Specification
Plug Type NGK / CPR8EA9

Chassis

Feature Specification
Frame Type Backbone
Overall Length 1,980mm x 700mm x 1,150mm
Seat Height 790mm
Wet Weight 125kg (ABS) / 122kg (STD)
Fuel Tank Capacity 5.5L
Wheelbase 1,350mm
Ground Clearance 145mm

Suspension, Tyres & Brakes

Feature Specification
Front Suspension Type Telescopic
Rear Suspension Swing arm
Front Tyre 110/80 – 14M/C 53P Tubeless
Rear Tyre 140/70 – 14M/C 62P Tubeless
Front Brake Single Hydraulic Disc with ABS / Single Hydraulic Disc (STD)
Rear Brake Spindle Type
