HONDA

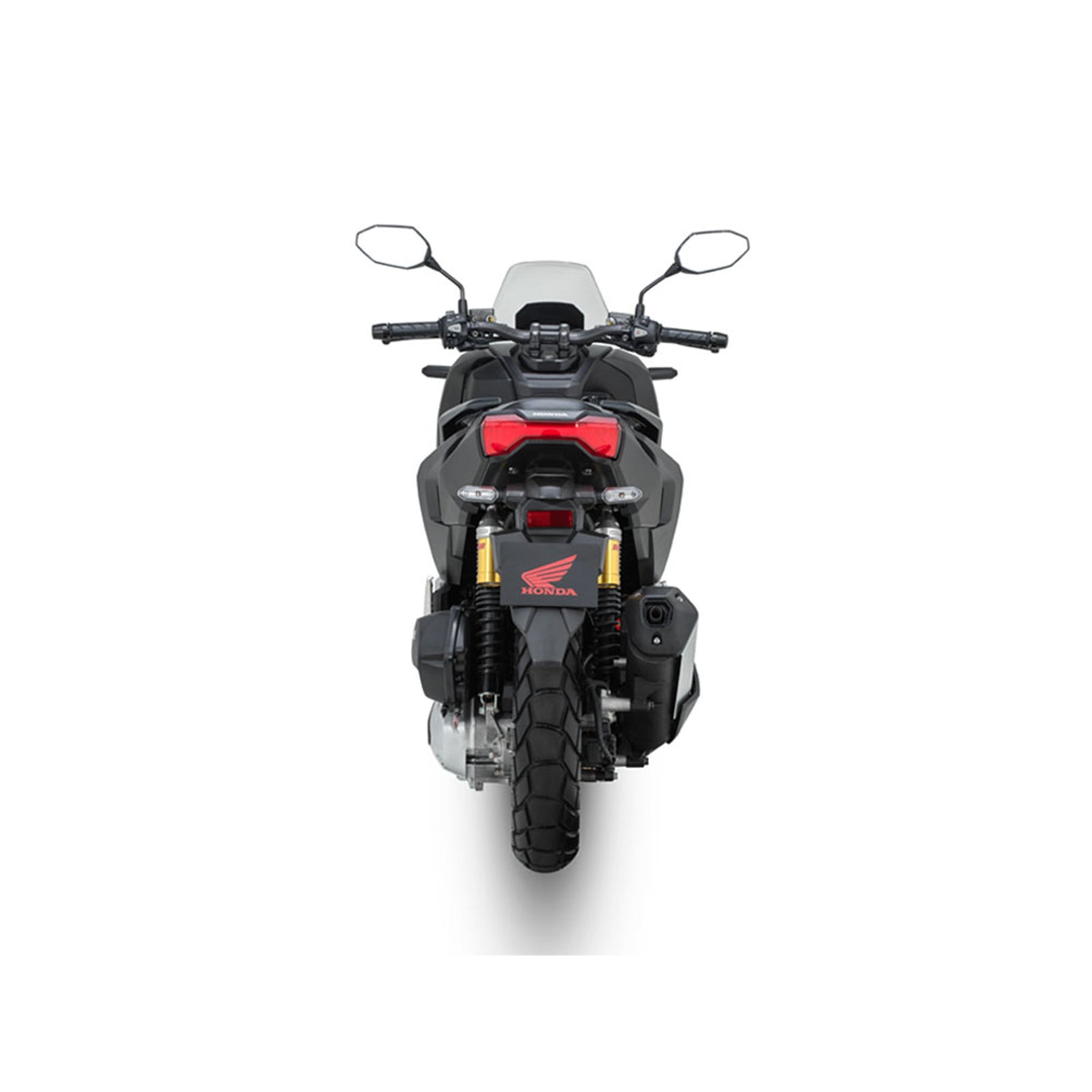

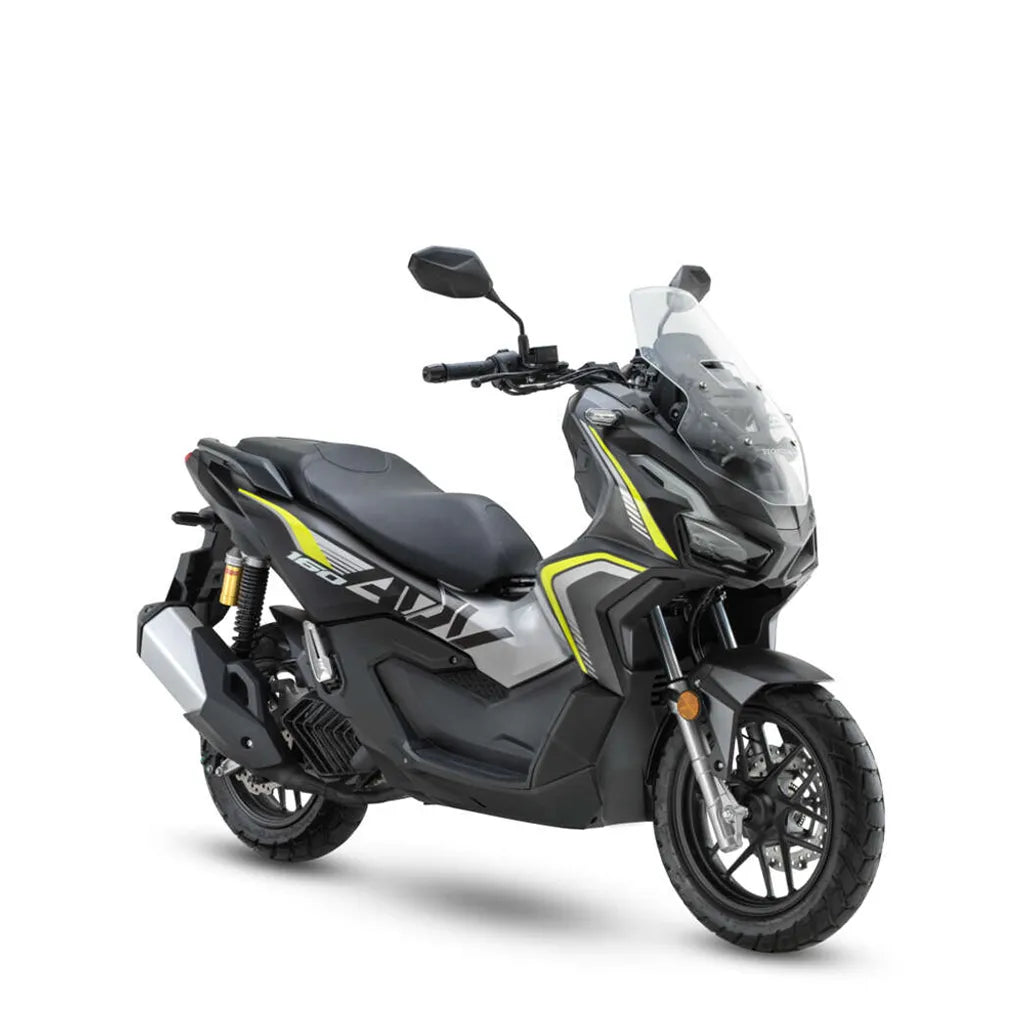

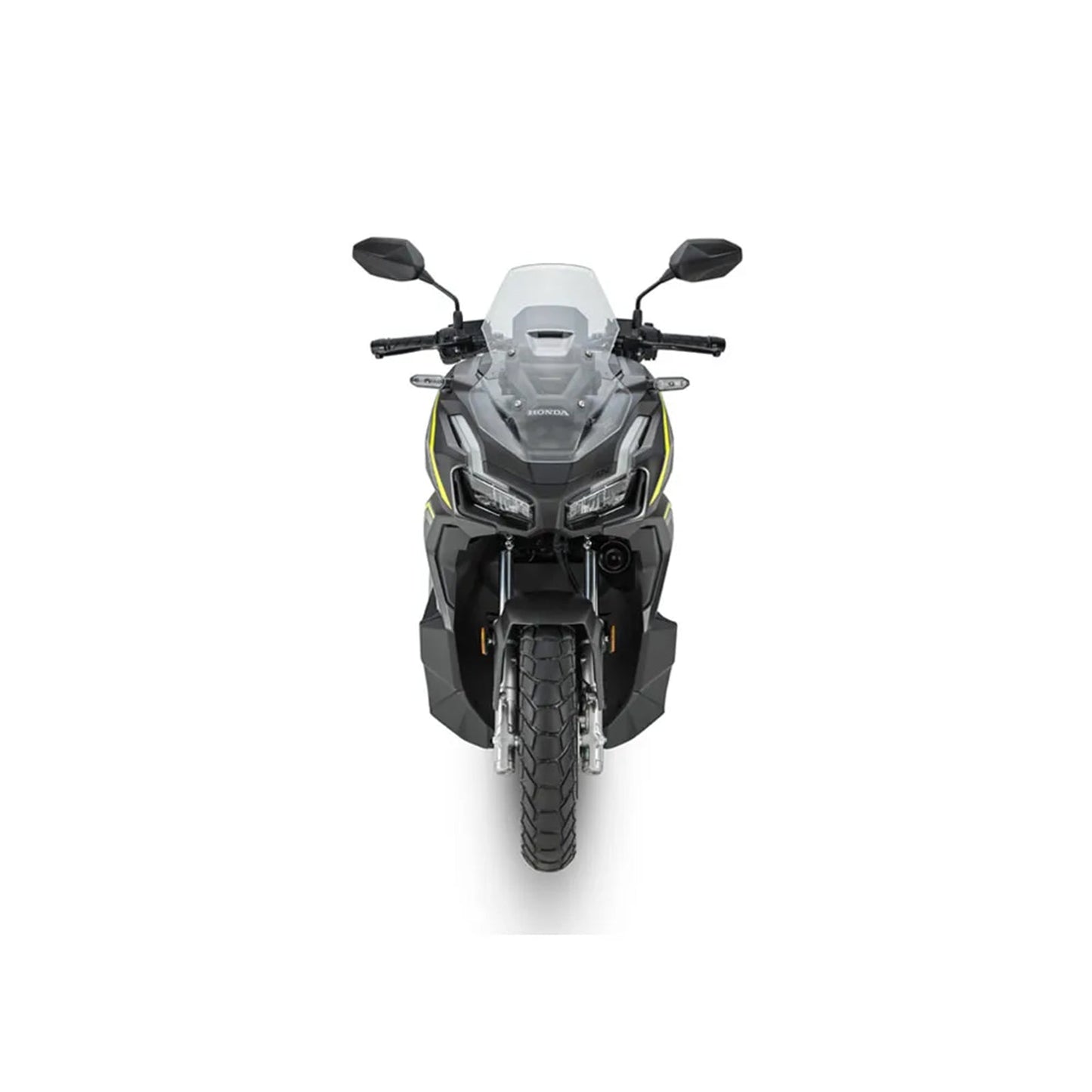

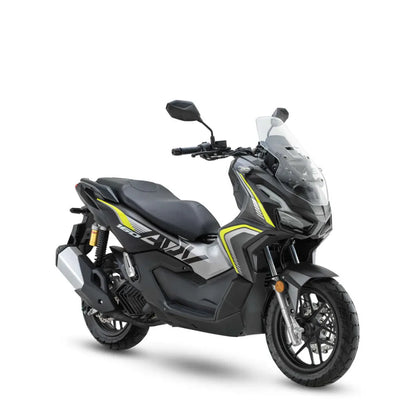

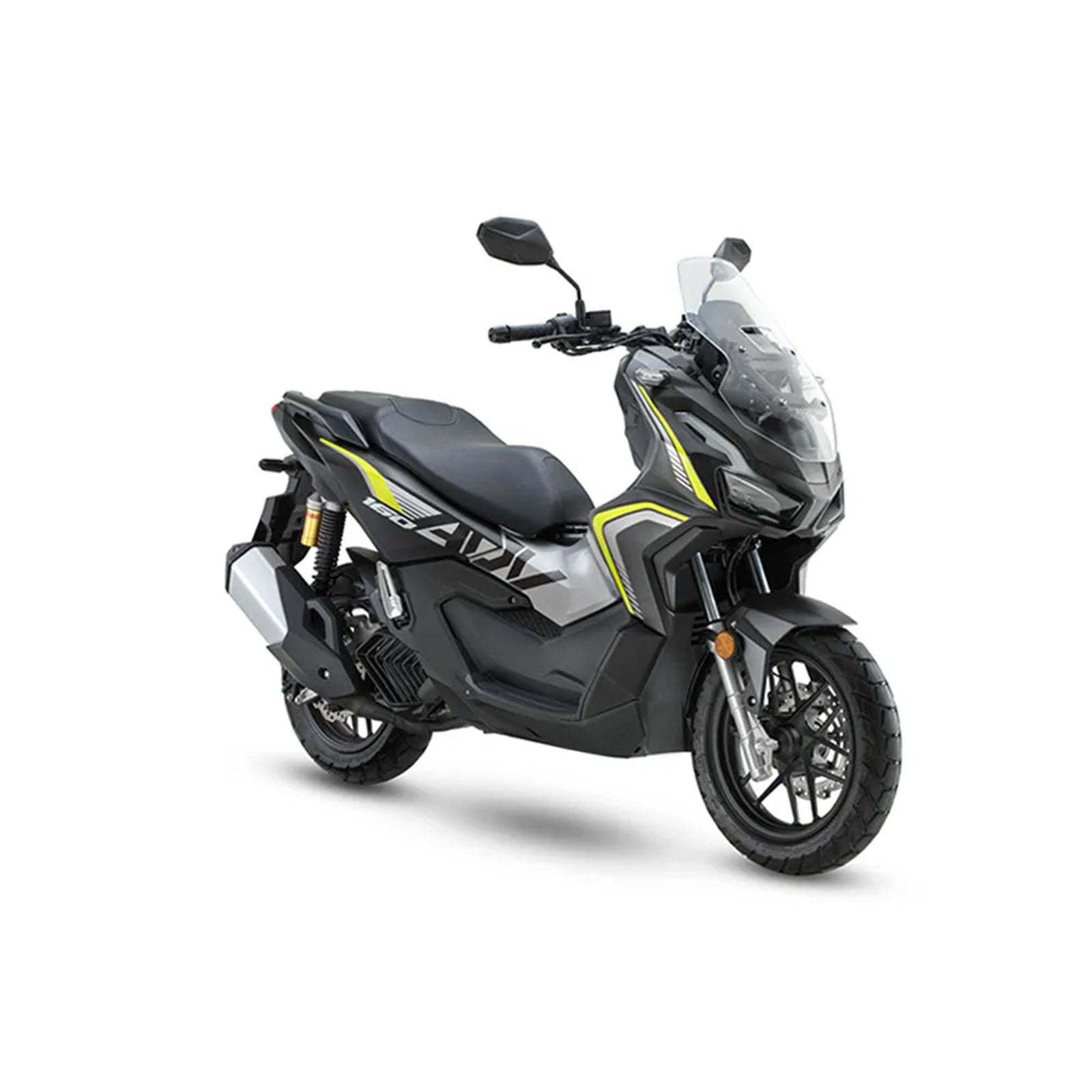

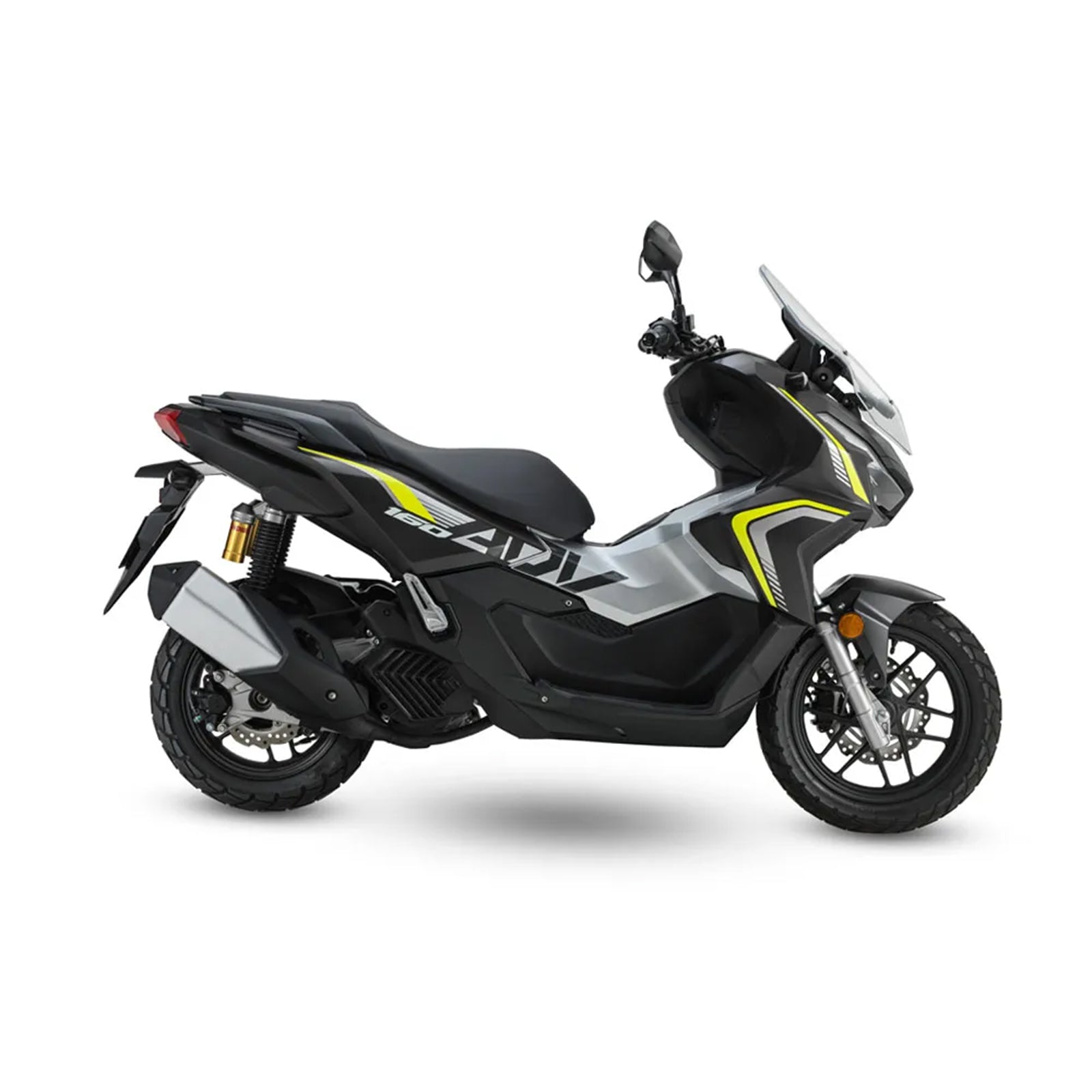

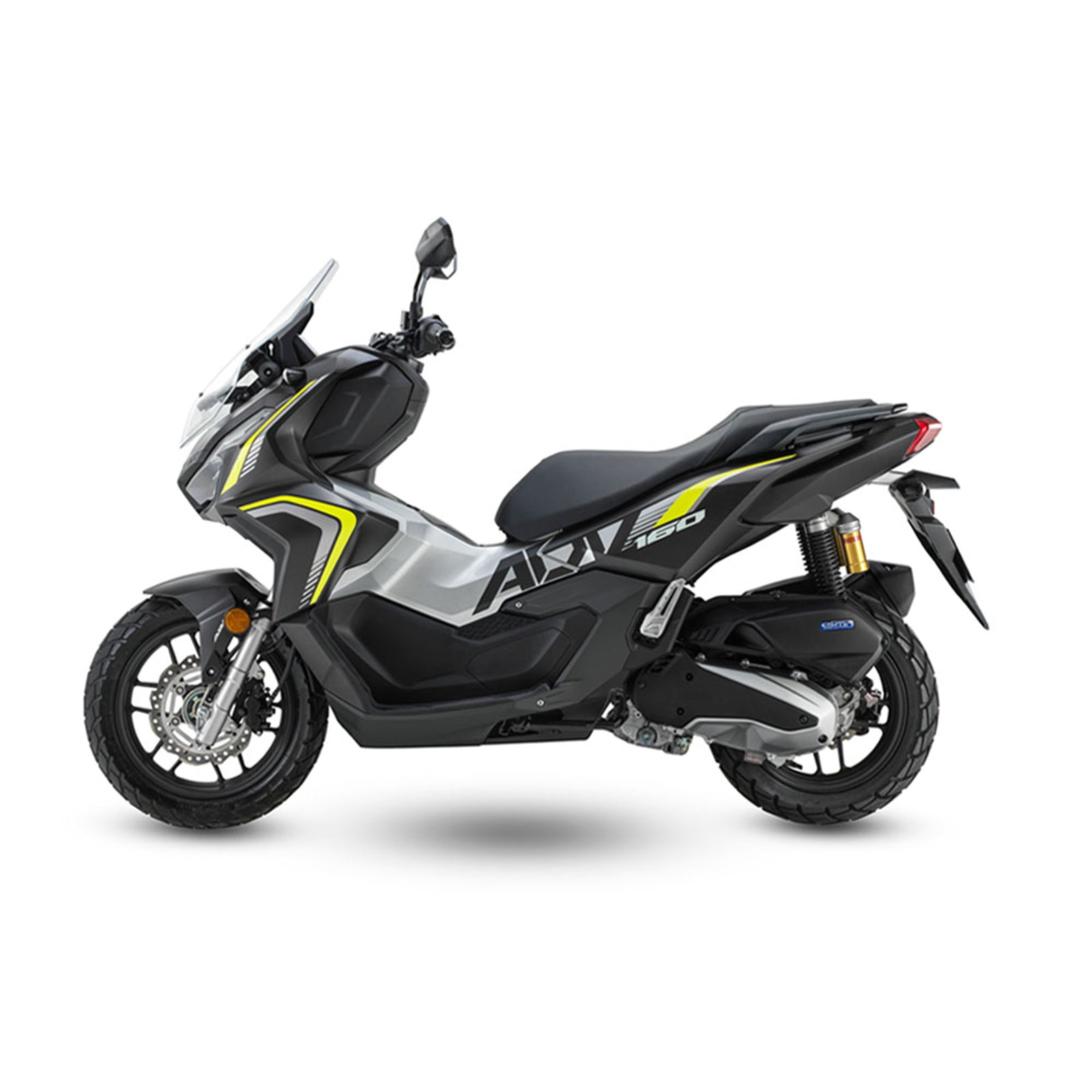

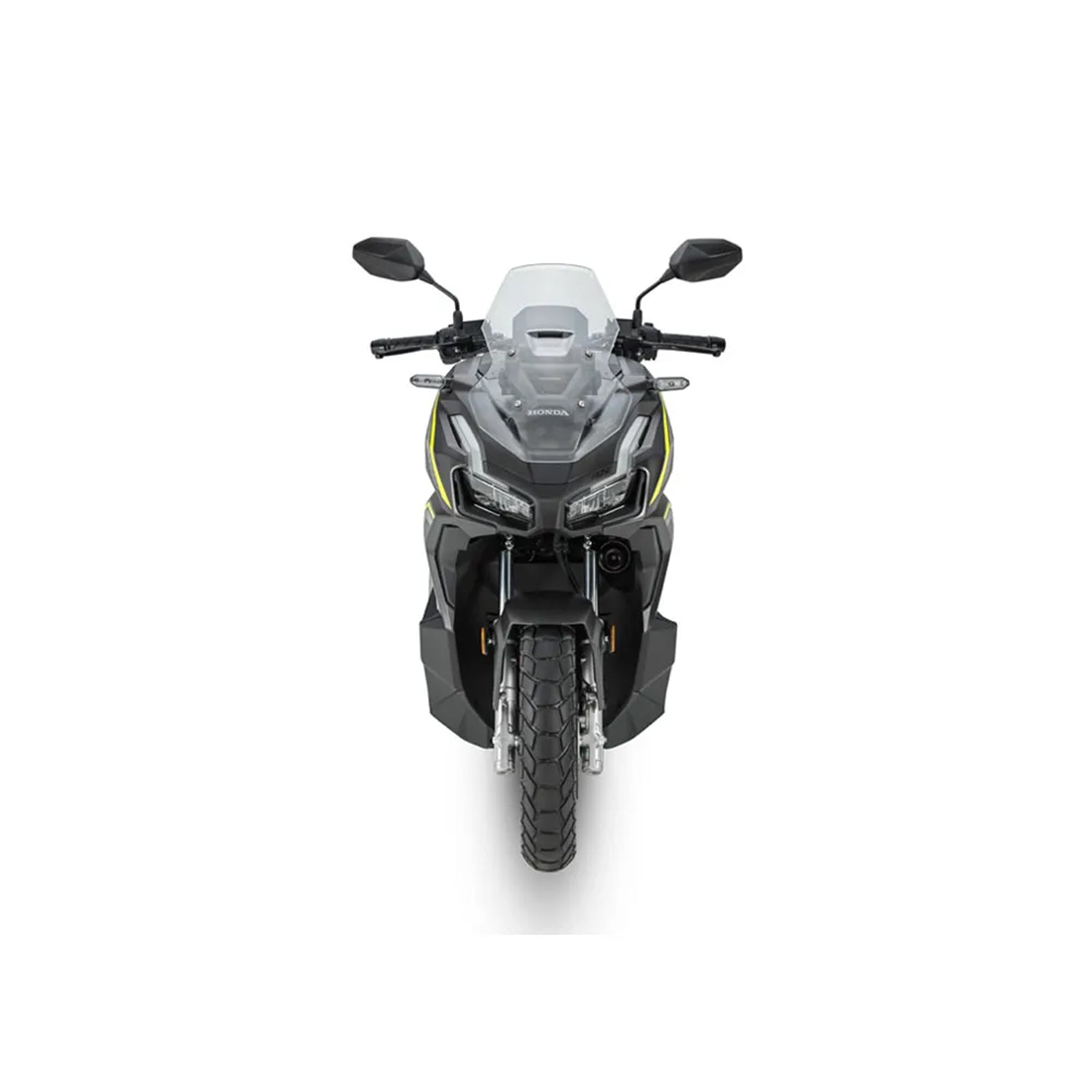

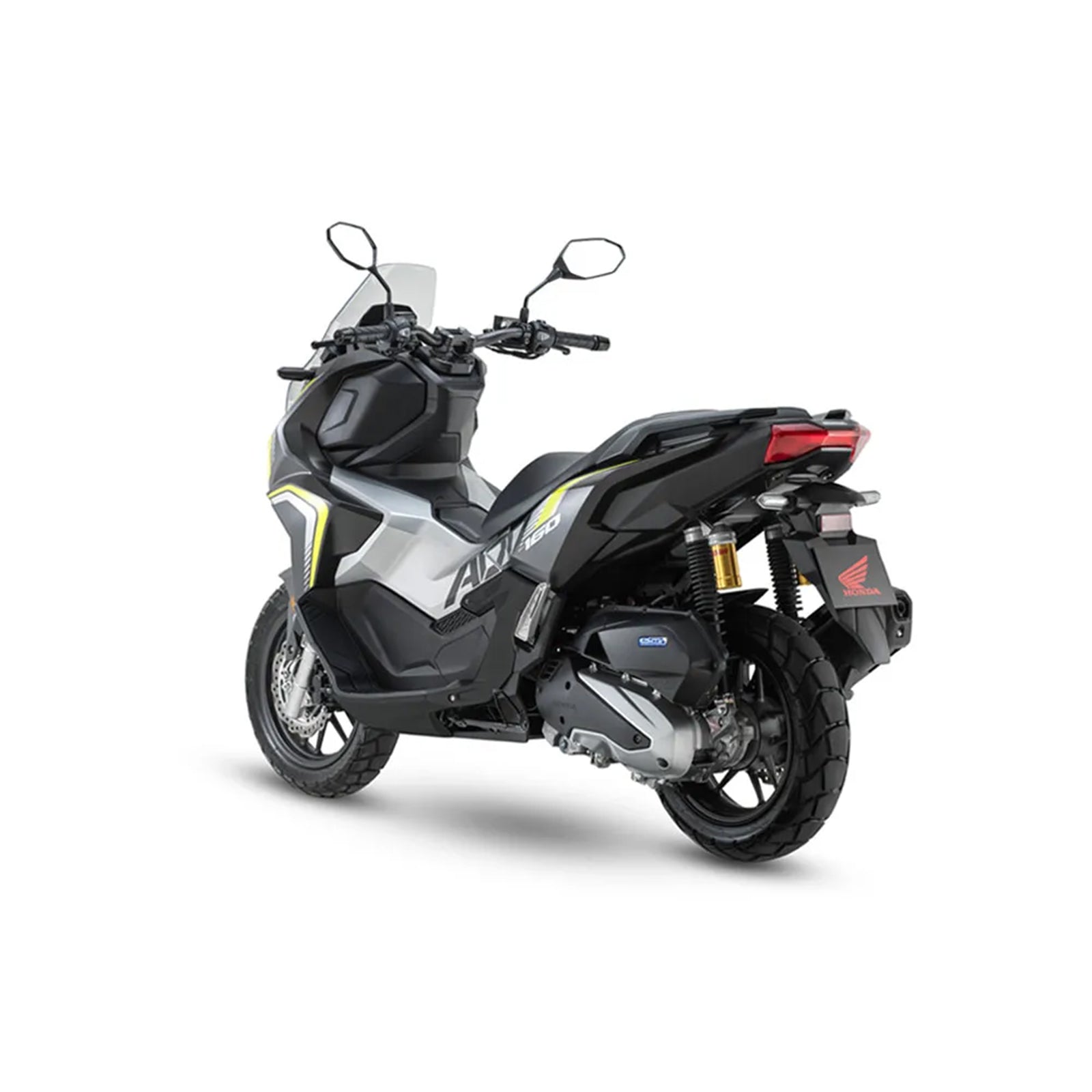

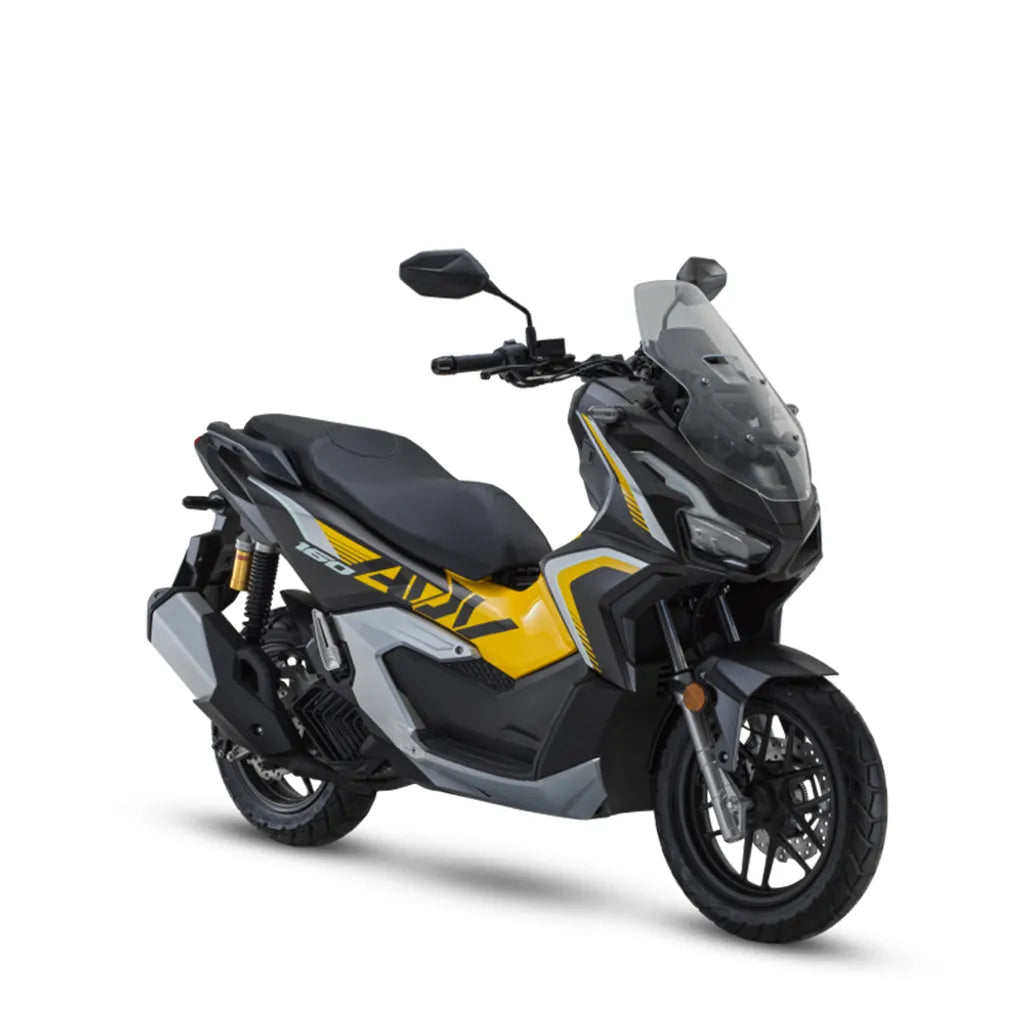

Honda ADV 160

Honda ADV 160

Sale Sold out

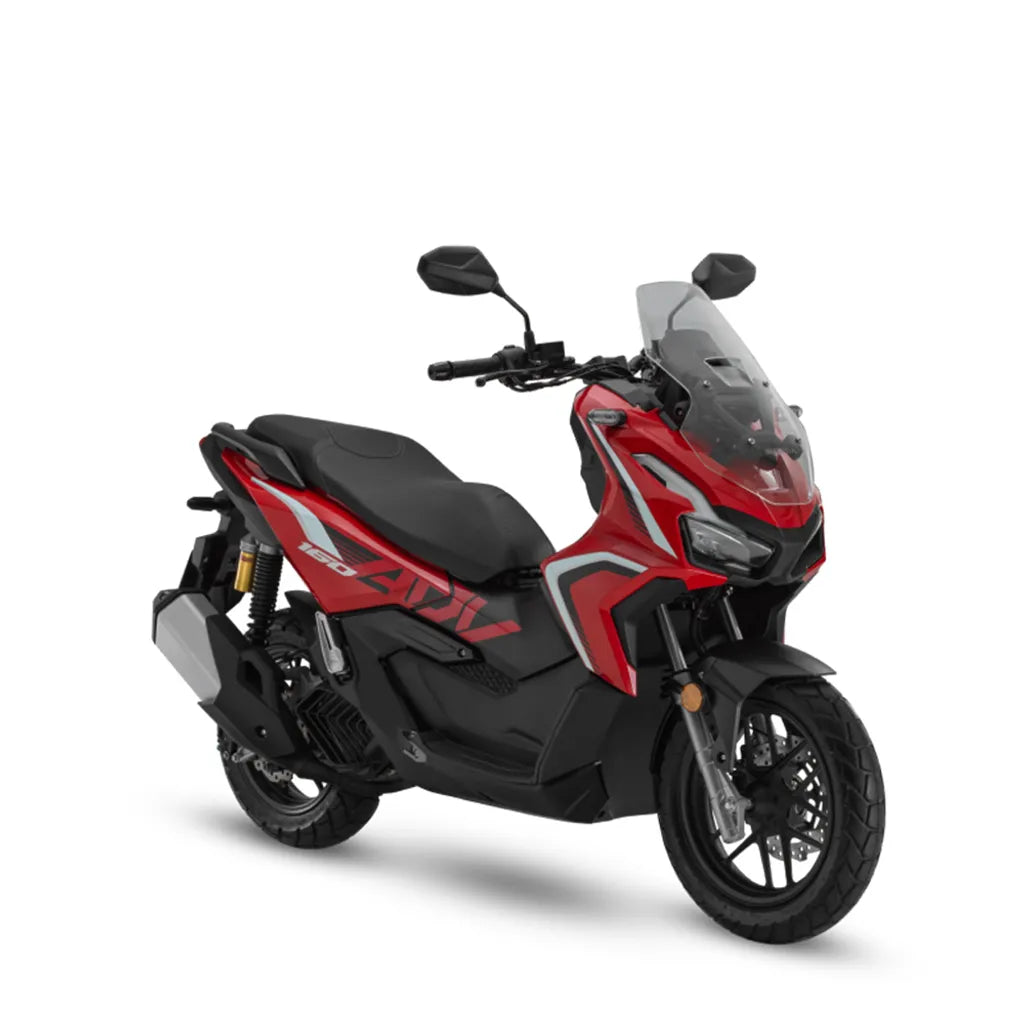

Color: Red ADV
Category Specification
Engine Type Single Cylinder, Liquid Cooled, SOHC 4-Stroke 4 Valve, eSP+
Displacement 156.9 cm³
Bore x Stroke 60.0 mm x 55.5 mm
Compression Ratio 12:1
Max Power 11.8 kW @ 8500 rpm
Max Torque 14.7 N.m @ 6500 rpm
Engine Oil Capacity 0.75 ℓ (After draining), 0.9 ℓ (After disassembly)
Fuel System PGM-FI (Programmed Fuel Injection)
Fuel Tank Capacity 8.1 ℓ
Starter Electric Auto Start
Battery Capacity 5 A.h (10h)
ACG Output 12 V
Clutch Type Automatic Centrifugal Clutch Dry Type
Transmission Type Automatic
Frame Type Double Cradle
Dimensions (L x W x H) 1950 mm x 763 mm x 1196 mm (Low) / 1270 mm (High)
Wheelbase 1324 mm
Seat Height 780 mm
Ground Clearance 165 mm
Curb Weight 133 kg
Suspension Front Telescopic
Suspension Rear Twin
Rim Size Front 14M/C x MT2.50
Rim Size Rear 13M/C x MT3.50
Tyres Front 110/80 -14M/C 53P (Tubeless)
Tyres Rear 130/70-13M/C 57P (Tubeless)
Brakes Front Hydraulic Single Disc with ABS
Brakes Rear Hydraulic Single Disc
